Cutlam 1.1 Cutting Machine

The Cutlam 1.1 is a bench-mounted cutting machine designed for a wide range of applications.

The Cutlam 1.1 is a bench-mounted cutting machine designed for a wide range of applications. Robust and easy to use, this machine has a very large cutting capacity.

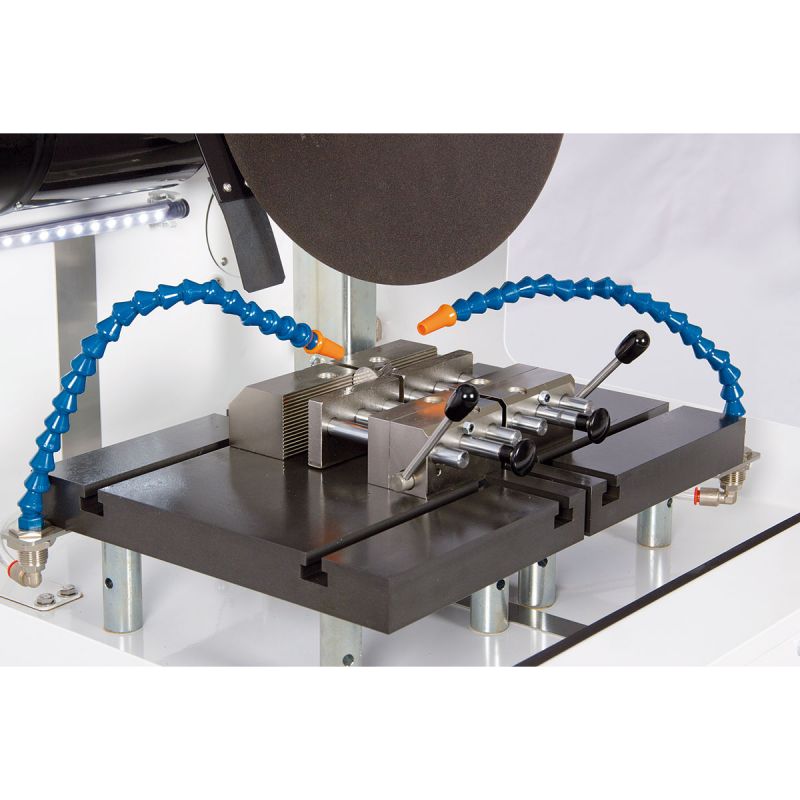

  • Spacious cutting table made from anti-corrosive cast iron
  • Easy-to-handle fully opening cover and remote motor
  • Ability to clamp components of thicknesses up to 120mm
  • Can be equipped with Ø 250 to 305mm cut-off wheels
  • Speed adjuster and powerful 3.8 kW motor - perfect for intensive use
  • High-capacity recirculation system with pre-filter and decanter compartments, ensuring optimum lubrication and cooling by a multi-point spray
  • External shower head combined with a tilted cutting chamber for easy cleaning
  • Inlet filter ensuring samples do not fall down the large-diameter outlet pipe
Wheel Ø 250 to 300mm
Shaft Ø 25.4mm
Standard flanges Ø 80mm
Max cutting capacity Ø 110 (Ø 305mm wheel)
Passage under the wheel 120 (Ø 305mm wheel)
Vertical movement Manual
Lubrication/cooling Recirculation system, 60 litres, on casters, integrated cleaning system, with shower head located outside the cutting chamber
Motor power 3.8 kW
Rotational speed Variable, from 1000 to 4000 rpm
Table Groove treated stainless steel, 400 x 300mm
Type of groove T groove 12mm (2 longitutinals, 2 transversals)
Display LED
Protection Transparent cover with locking system
Body Epoxy painted coated steel
Tension 400 Volts - 50 Hz (three-phase)
Dimensions W x H x D: 630 x 650 x 820mm (H - cover opens 820mm)
Weight 125kg
